SAMS: Marine Environmental Monitoring System
Vertical IoT for aquatic monitoring
The SAMS system (Sensor-based Aquatics Monitoring Systems) is a complete vertical of EXXN Engineering for marine environmental monitoring IoT, which collects water quality data through high-precision sensors located on buoys and reports it in real-time - using the most suitable wireless technology for each location - to a data processing platform that represents it in the form of a dashboard, including inventory management, infrastructure alarm reporting, and firmware updates for IoT nodes.
SAMS can collect information on temperature, dissolved oxygen, pH, hydrocarbons, salinity/conductivity, blue-green algae, flow, current discharge, and any other custom sensor requested by the user.
The basic system is composed of the following elements:

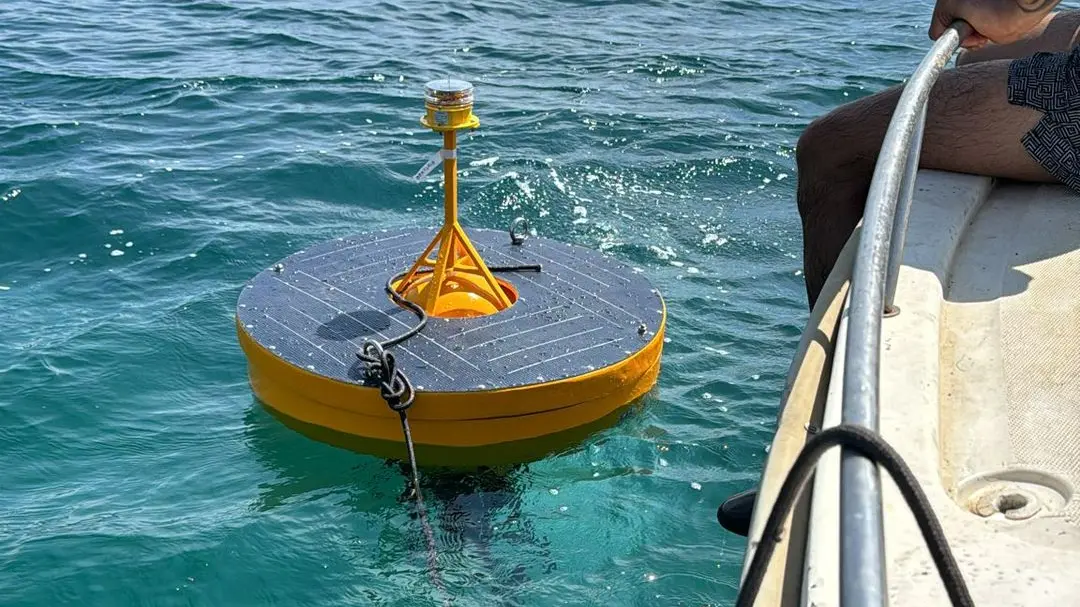

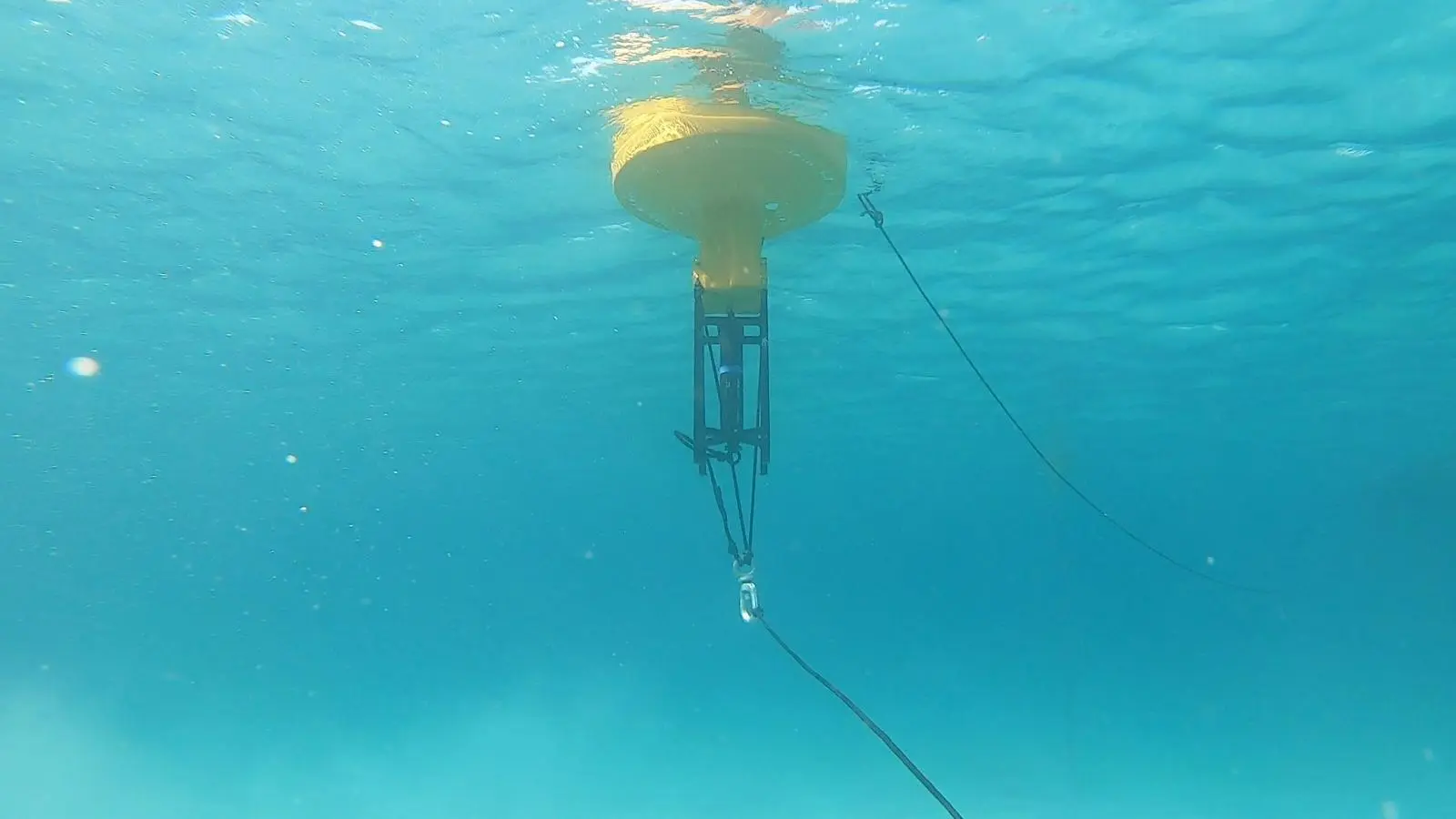

BOX90 Buoy
Discreet buoy anchored with solar panel power supply and high-capacity battery

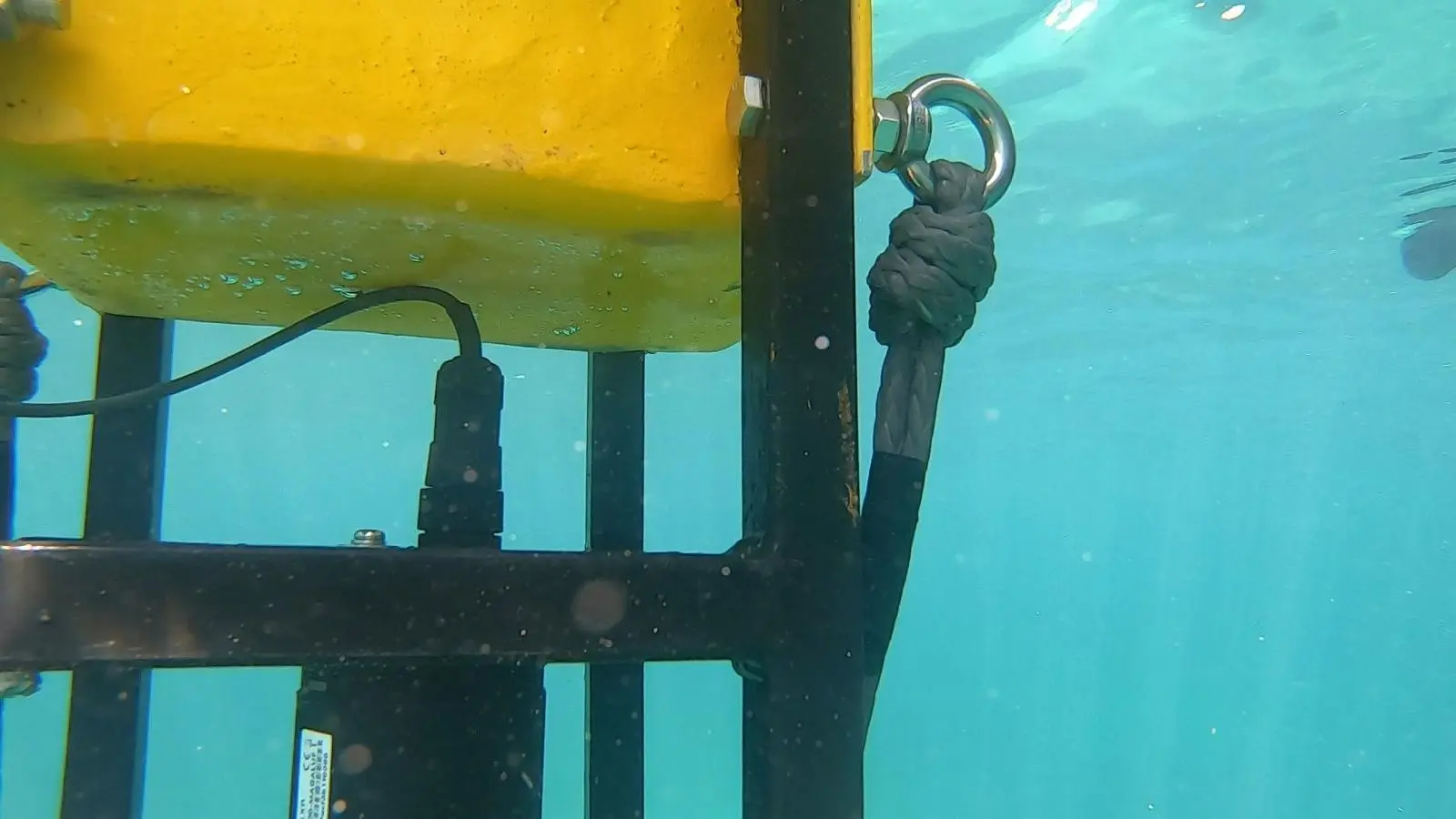

MSA800 Multisensor
Configurable aquatic multisensor for monitoring up to 8 parameters.
VBO40 Virtual buoy
Multisensor and electronics for docks and cliffs without the need to deploy a buoy
Datalogger EXX1012
Completo nodo IoT que soporta procesado EGDE y comunciación celular LWPAN y 2/3/4/5G
EXXN IoT Platform
Inventory, data processing, component visualization, alarm reporting
Additional services
EXXN offers all the necessary services for the operation and maintenance of SAMS systems:
Project and permits
We prepare and approve the installation project and request all the permits for the deployment
Repositioning and Installation
You won't have to worry about the installation or risk prevention, our managers will take care of it for you,

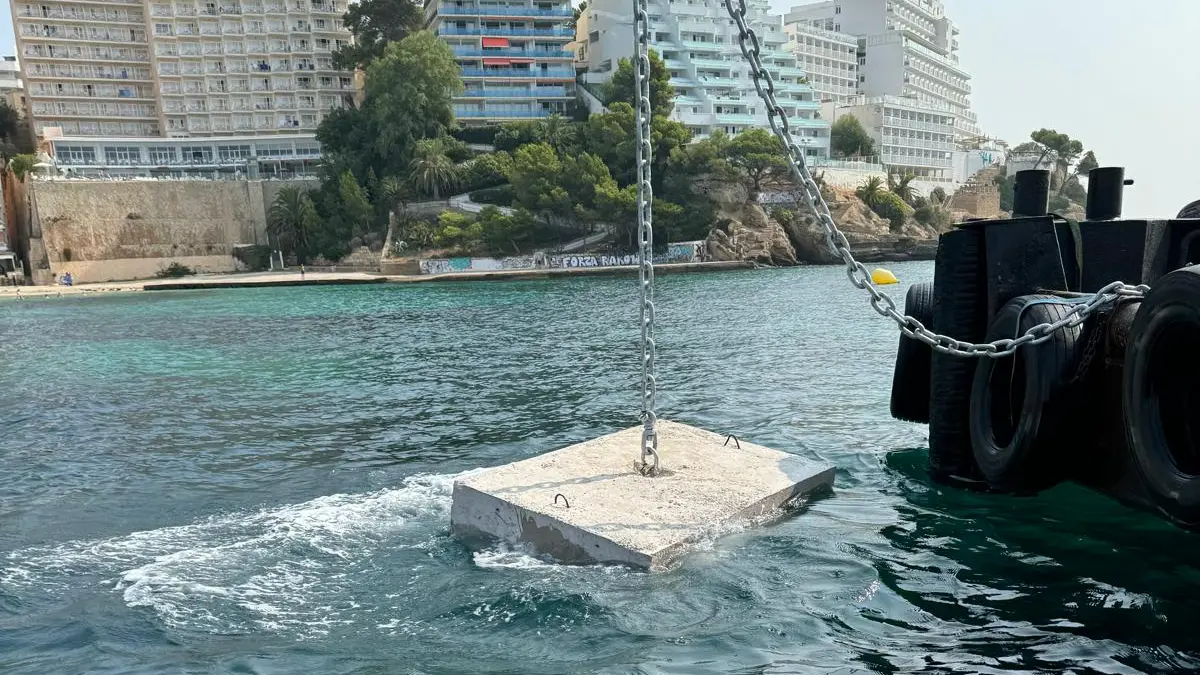

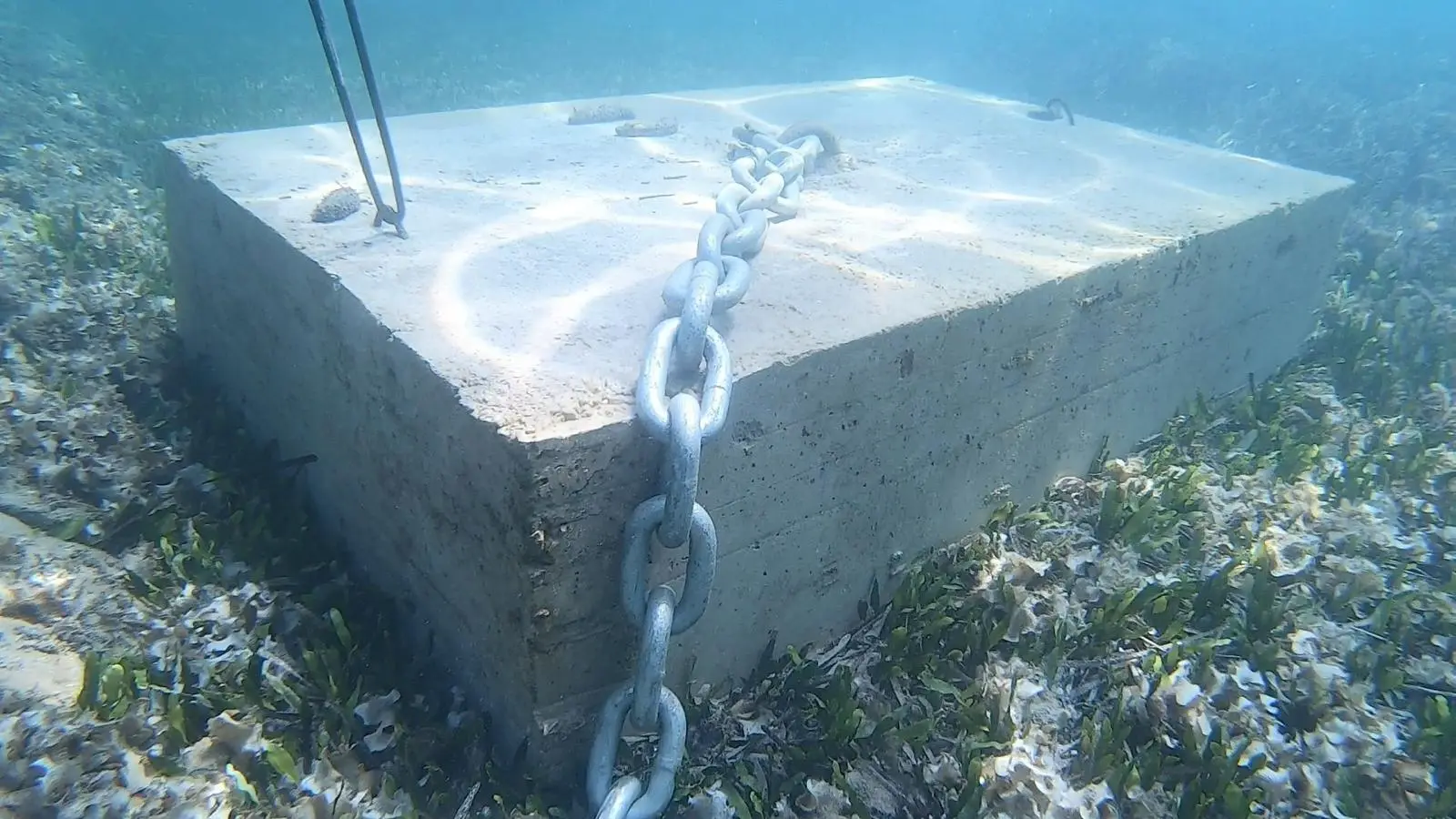

Design of the foundation
We design the dead weights required for the buoys based on the deployment scenario, ensuring the moorings.
Coverage Study
With our CELLDoctor tool, we study the coverage of the installation sites for the buoys, selecting the optimal technology for each deployment (NB_IoT, CAT-M, Sigfox, 2G/3G/4G/5G)
Preventive maintenance
EXXN offers preventive maintenance for different systems to ensure stable operation, with the maximum possible availability, without surprises or hidden costs.
Corrective Maintenance
Replacement of damaged components due to malfunction and other corrective maintenance operations according to the SLA defined with the client
SAMS system references
The SAMS systems have been exhaustively tested in different scenarios, both in the ocean and in freshwater lakes.

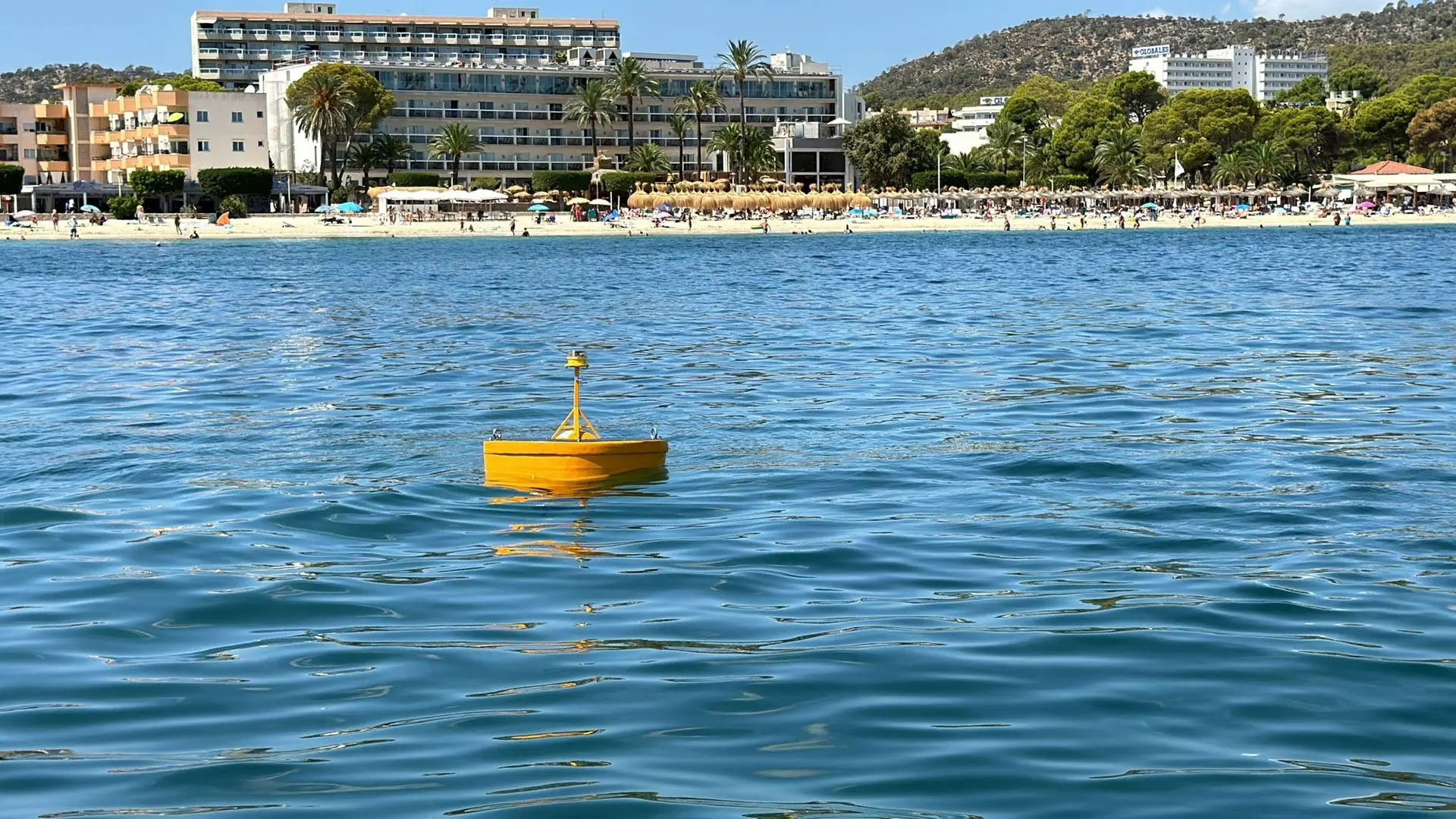

SAMS in CALVIÀ
SAMS system operated by the Calviá Town Hall consisting of 16 BOX90 buoys for measuring parameters of marine water quality that are used to report to visitors of the different beaches in the region

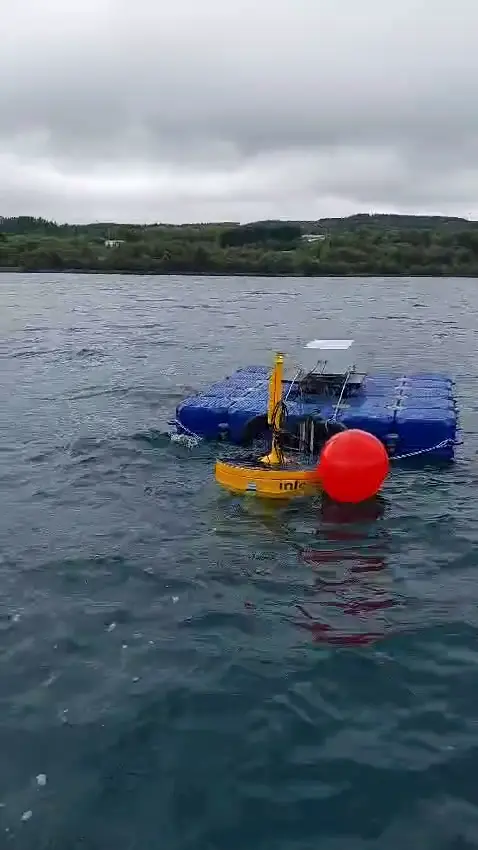

SAMS at Lake As Pontes
SAMS system installed in the largest and deepest artificial lake in Europe, Lake As Pontes. Operated by INTACTA Environmental Management, it integrates a configuration with an aquatic multisensor, current meter, and measurement of the current angle.
